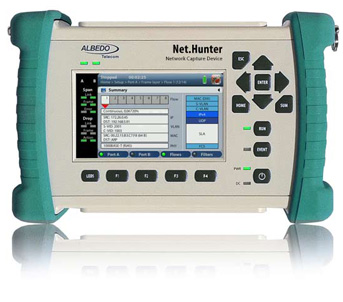

Net.Hunter

This unique Packet Capture Appliance is ideal for Security and Forensic applications because it is capable of analyzing ALL packets in a full duplex live line, while capturing those that are compliant with a trigger condition, or with any of the 15+15 programmable filters. Suspicion packets can either be saved in a local hard disk drive -at wirespeed- either be tapped to a LAN. Operations are executed at FULL bit rate in both directions [Tx+Rx] with ZERO delay [ns] and ZERO loss to the live traffic.

Features and Benefits

• Filter/Capture/Record at full duplex Gbit
• 100% firm/hardware: nanosec accuracy
• Non-stop packet capture 24/365
• No MAC, no IP: Undetectable
• No MAC, no IP: Cannot be hacked
• Mirror and Pass-through mode
• Storage: 120 or 500 GBytes hard disk
• Storage: at wirespeed (1+1 GbE)
• Filtering, Capture & Aggregation
• Trigger Conditions
• Captures CRC errored frames
• Hardware PCAP Time Stamp
• Wireshark friendly for protocol analysis
• VoIP, IPTV, Data, TCP/IP and more
• Built-in Tap to 1000BASE-T
• Replays Traffic
• VNC remote control
• 15+15 Programmable Filters
• IPv4 and IPv6

Trigger

• Multilayer Trigger
• Several conditions for trigger set up
• Logical trigger functions
• When trigger is on all the traffic is save on disk

Filters

• Sixteen (16) simultaneous filters can be applied to the traffic.
• Ethernet source and destination MAC addresses
• Selection of MAC address sets with masks
• Ethertype value with selection mask,
• VLAN-VID with selection mask,
• VLAN-CoS value with selection mask
• IP source, destination, and source-and-destination
• IP address group: subset of addresses filtered by masks
• Protocol encapsulated in the IP packet (TCP, UDP, Telnet, FTP, etc.)
• DSCP field, single value and range
• TCP/UDP port, single value and range
• Agnostics filters defined by 16 bits masks and user defined offset
• Lawful filter: 64 byte pattern match at any place in the frame payload.

Users

• Enterprise Forensic Analysis
• Cybersecurity
• e-Banking
• Defense and Intelligence agencies
• Law / Police / Intelligence applications
• Telecom Troubleshooters
• Complement to Firewalls

CTIA Awards

The CTIA Emerging Technology (E-Tech) Awards program honors the industry's innovative new products and services in mobile apps, consumer electronics, enterprise & vertical markets and network technology. Net.Hunter has been nominated in the Security, Fraud & Privacy category, as a product indicated to protect infrastructure and customers against outside threats.

Rack or Handy?

Net.Hunter is presented in two formats:

1. the tradicional 1U rack-mounted,
2. hand-held self contained box.

CODE	DESCRIPTION
AT.NHunterk.HH	Net.Hunter hand-held. Battery operated capture device including 2 Line ports (SFP interfaces supporting 10BASE-T, 100BASE-TX, 100BASE-FX, 1000BASE-T, 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX), 2 Mirror ports (RJ45 interfaces including 10BASE-T, 100BASE-TX, 1000BASE-T), aggregation function in one mirror port, storage in internal high speed SDD in PCAP / PCAPNG format with hardware timestamps. Includes AC/DC adapter, transportation bag, two units of RJ45 SFP transceiver (10BASE-T, 100BASE-TX, 1000BASE-T). [REQUIRES:  AT.NHunter.SSD120]
AT.NHunter.SSD120	SSD 120 GB: Internal Solid State Drive with capacity 120GB - Need to be purchased with the Net.Hunter base unit for line speed capturing.
AT.NHunter.NS	Network Search. Automatic detection of up 16 most frequent streams listed by IPV4, IPV6, VLAN and MAC.
AT.NHunter.POE	Power over Ethernet bridge. PoE / PoE+ pass through as per IEEE 802.3af and IEEE 802.3at.
AT.VNC.RC	Graphical Remote Control. Based on VNC for Windows and Linux. Ethernet/IP remote control that duplicates the tester graphical user interface in a remote computer.
AT.SNMP.RC	SNMP Remote Control and Automation. Based on SNMP protocol allows user to control the tester remotelly using SNMP queries.
AT.Wi-Fi.RC	Wi.Fi USB. Remote Control wireless interface to be used together with VNC. [REQUIRES: AT.VNC.RC]
AT.1000Sx.SFP	SFP Adapter. 1.25 Gbps SFP, 850 nm, MMF, 500 m reach, w/ DDM, Duplex LC, 0 - 70ªC
AT.1000Lx.SFP	SFP Adapter. 1.25 Gbps SFP, 1310 nm, SMF, 20 Km reach, w/ DDM, Duplex LC, 0 - 70ªC
AT.1000Zx.SFP	SFP Adapter. 1.25 Gbps SFP, 1550 nm, SMF, 80 Km reach, w/ DDM, Duplex LC, 0 - 70ªC
AT.Elect.SFP	SFP Adapter. 10/100/1000BT Electrical SFP transceiver, SGMII, 0 – 70ºC
AT.100Fx.SFP	SFP Adapter 100FX. 125 Mbps SFP, 1310 nm, MMF, 2Km reach, w/ DDM, SGMII, Duplex LC,  0 – 70ºC
AT.20	Car charger. Power adapter to charge the test unit from car battery.
AT.Lipo.Batt	Additional Lipo battery.
