Net.Time clock

Net.Time represents the state-of-the-art in timing as it has been designed to deploy the most precise and secure synchronization networks for critical services such as electricity and telecommunications. Net.Time is fault-tolerant, has a built-in GNSS receiver, Rubidium oscillator, redundant power supply and accepts a wide variety of time references that can be used as primary or backup references. Provides compatibility between timing signals for synchronization distribution using protocol translation in all directions.

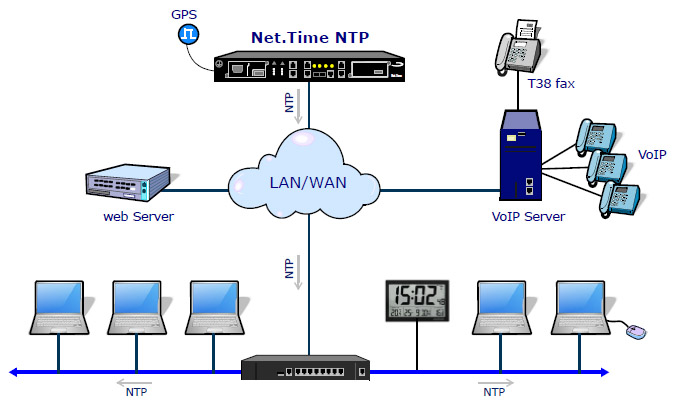

Net.Time is a PTP / NTP appliance that can be configured as Master, Boundary and Slave clock to distribute a large variety of timing signals including PTP, NTP, SyncE, ToD, IRIG-B, PPS, T1, E1 and MHz. Net.Time is equipped with an atomic Rubidium oscillator to satisfy the highest time accuracy in the event of hold-over, OCXO is also a valuable option to maintain an excellent time stability in locked mode. Net.Time is very flexible indeed, as it accepts multiple clock references to discipline the internal circuits. GNSS is the default and the most obvious reference but signals such as PTP, NTP, SyncE, ToD and IRIG-B can also be used as main reference inputs and can be activated in a hierarchical way.

Net.Time is conceived as a new-generation clock intended to facilitate the transition from to the new PTP networks. With this purpose in mind Net.Time offers seamless translation between SNTP and PTP presenting a wide variety of inputs / outputs for primary or backup time references.

PTP /NTP over PRP clock for mission critical applications

PRP native (DAN-P clock) no Red box required

Supports and translates PTP Telecom and Power profiles to integrate heterogenius networks.

OCXO / Rubidium are available for internal oscillator.

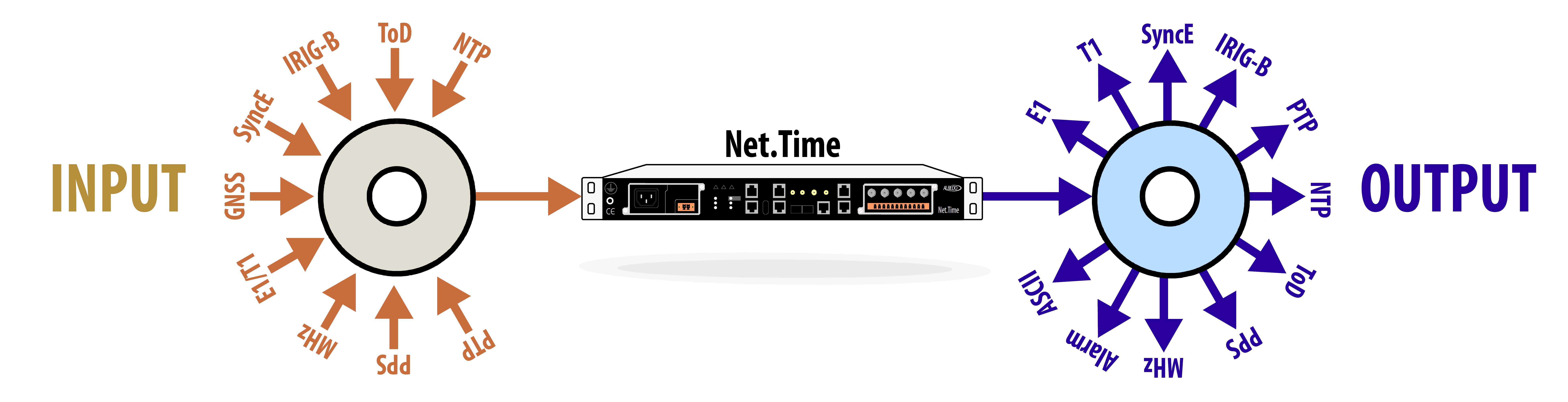

Multiple in/out signals PTP, NTP, SyncE, 1PPS, E1, T1, MHz, Mb/s

PTP-to-all, NTP-to-PTP, IRIG-B-to-PTP protocol translation

Facilitates the coexistence of legacy and new protocols

Applications

Power Substations

Smart grid automation requires extremely precise time accuracy --and stability as well-- for tasks such as peak-hour billing, virtual power generators, or outage management. It is also necessary for the automatic protection of high voltage lines that are permanently supervised, when a substations detects an event, it is timestamped and transmitted to ensure correct operation.

The support of Power profile, PRP and IRIG-B make Net.Time ideal for the new digital substations willing to secure the investment and the support of both, legacy and new interfaces. In substation many resources require accurate synchronization ranging from microseconds to milliseconds.

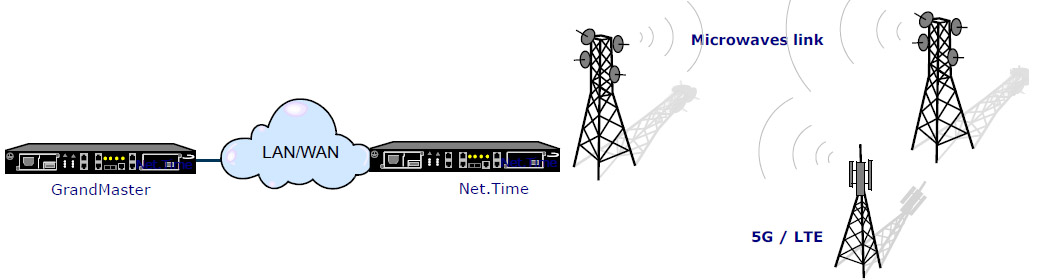

5G Telecom

5G operators require accurate phase and time alignment at the backhaul of the wireless in order to increase the density of terminals reducing cells size. Timing is also necessary for reusing the frequencies, to control the hand-over, logging the events and many more new services that are boosting the mobile business. Net.Time in telecom networks is deployed at the edges and generally configured as a boundary clock to provide a high level of accuracy and protection with signals such as PTP, SyncE, PPS, T1/E1 and MHz.

New wireless deployments have stronger requirements at synchronization plane in order to reduce the size of the cells reusing more often available frequencies and, very important, wireless terminals have to share up/downstream channels to improve the efficiency by using phase information.

Air Traffic Control

Time is a key resource in Navigation Systems to ensure the proper functioning. Inherited signals such as IRIG-B, NTP and TDM are still in use but progressively are being replaced by PTP time-stamping systems to provide a unique, accurate and consistent synchronization based on Net.Time equipped with atomic oscillators disciplined by GNSS and distributed throughout the territory, air traffic control centres and airports.

Timing is a key resource to ensure the correct operation of the Air Navigation Systems. Legacy signal --such as IRIG B, NTP and TDM-- are still on use but are being progressively substituted by PTP time stamping to provide a unique, accurate and coherent synchronization signals based on atomic clocks disciplined by GNSS and distributed across the IP network to the whole territory.

Finance Institutions

Financial services rely on powerful transport layer capable to provide high speed, availability, security and reliability. At the timing side, NTP and GNSS has been la widely used to synchronize nodes, transactions, and to log time-stamped events in a chronological sequence. Nevertheless today are in the migration pace to PTP that will improve the quality and functionalities of this service.

Net.Time Features

Synchronization

PTP function

Boundary, Grandmaster, and Slave clock

Up to 256 unicast clients at 128 packets/sec

PTP profile translation from Port A to Port B

PTP profiles

Default profiles (IEEE 1588-2008 Annex J)

Telecom frequency profile (ITU-T G.8265.1)

Telecom phase and time profile (ITU-T G.8275.1)

PTS / APTS profile (ITU-T G.8275.2)

Utility Profile (IEC 61850-9-3)

Power Profile (IEC C37.238)

NTP function

Port A: NTP server / Port B: 1000 transactions per second

NTPv3 (RFC 1305) and NTPv4 (RFC 5905) server and client

SNTPv3 (RFC 1769) server

SyncE function

Interfaces: RJ45 and SFP

Full ESMC / SSM support as per ITU-T G.8264 and G.781

SyncE for time holdover during GNSS outage

GNSS

GPS, GLONASS, Beidou, Galileo support

72 channels in the L1 band

Single and Multiple constellation

Cable delay compensation

Time Inputs / Outputs

Time: PTP, NTP, IRIG-B (B00X, B12X, B13X, B14X, B15X, B22X), ToD (ITU-T G.8271, China Mobile and NMEA)

Phase: 1PPS, 1PP2S

Frequency: 1544 kHz, 2048 kHz, 5 MHz, 10 MHz, 1544 kb/s (T1), 2048 kb/s (E1), SyncE

Rubidium / OCXO oscillators Internal Oscillator

Default OCXO better than ±0.1 ppm

Optional Rubidium better than ±5.0 e-11

Rubidium features

Aging (1 day, 24 hours warm up): ±4 e-11

Aging (1 year): ±1.5 e-9

Warm-up (time to <1.5 e-9): 15 minutes (typical 25º C)

Locked Accuracy

To UTC (24 h locked to GNSS, peak value, ±2º C): ±40 ns

To reference (24 h locked to 1PPS / ToD, peak value ±2º C): ±10 ns

Hold-over Accuracy

OCXO: <1μs (1h ±2ºC) / <10μs (12h ±2ºC)

Rubidium: <100ns (2h ±2ºC) / <1μs (24h ±2ºC) / <10μs (120h ±2ºC)

Freerun Accuracy

Accuracy on shipment at 25ºC: ±5 e-11

PRP resilience

PRP extension for IEEE 1588 / IEC 61588

Link Redundancy Entity (LRE) / IEC 62439-3

Ports

2 x RJ45 (10BASE-T, 100BASE-TX, 1000BASE-T): PTP, NTP, SyncE, PRP (in/out)

2 x SFP (100BASE-FX, 1000BASE-LX,1000BASE-T, 1000BASE-ZX, 1000BASE-BX): PTP, NTP, SyncE, PRP (in/out)

1 x SMA port: GNSS (in)

3 x SMB ports: IRIG-B (in/out), 1PPS (in/out), 1PP2S (in/out), 10 MHz (in/out), 5 MHz (in/out), 2048 kHz (in/out), 1544 kHz (in/out)

2 x RJ48: IRIG-B (in/out), ToD (in/out), 10 MHz (in/out), 5 MHz (in/out), 2048 kHz (in/out), 1544 kHz (in/out)

Platform

Operation

Fan-less operation ETSI 1U rack mountable (1¾” x 10” x 19” / 240 mm), weight: 2.8kg / 6.2lb

Temperature / Humidity range: -10ºC ~ +65ºC, 10% ~ 90%

Redundant power supply

AC: 85 ~ 264 Vac, 47 - 63 Hz (IEC 60320 C13/C14)

DC: 18 ~ 75 Vdc (2-pin 5.1 mm)

Universal: 85 ~ 264 Vac or 100 ~ 370 Vdc (2-pin 5.1 mm)

Power Consumption: 10W ~ 14W

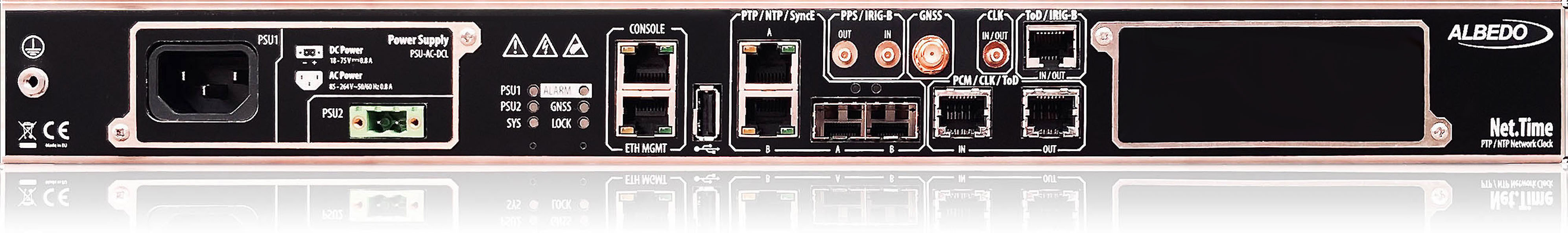

Front/Back Panel

LEDs: Platform (PSU1, PSU2, System), Application (Alarm, GNSS, Locked), Ports (Link, Activity)

1 x RJ45 Network and Time interfaces

1 x RJ45 Management Interfaces

USB software and firmware upgrade

1 x Expansion module

1 x Reset button

Management

Local console by CLI (RJ-45)

SSH through management interface (RJ-45, 10/100BASE-T)

RFC 3164 Syslog event reporting (device role)

TFTP software and firmware upgrade

CODE	NET.TIME POWER
AT.NTIMEP.GM.AC	ALBEDO Net.Time PTP Grandmaster Clock. Dual 10 / 100 Mb/s electrical Ethernet port and dual 100 Mb/s optical Ethernet supplying synchronization as specified in IEEE 1588-2008 Annex J “Default Profiles”, IEC 61850-9-3 "Utility Profile", IEEE C37.238-2011 "Power Profile 2011", IEEE C37.238-2017 "Power Profile 2017", ITU-T G.8265.1 “Telecom frequency profile”, ITU-T G.8275.1 “Telecom phase and time profile” and ITU-T G.8275.2 “PTS / APTS profile” to a maximum of 16 clocks. Network Time Protocol version 3 (RFC 1305), version 4 (RFC 5905) and Simple Network Time Protocol version 3 (RFC 1769) master functionality. Internal OCXO timing source. GPS, GLONASS, BeiDou and Galileo clock reference input. 1PPS, 1PP2S and time-of-day inputs and outputs. Inter Range Instrumentation Group type B (IRIG-B) time codes input and output over balanced or unbalanced interfaces. Frame and network statistics. Console and and Ethernet management ports. Local and remote firmware upgrade. Single AC power supply unit (PSU-AC). Includes AC power cord, console cable, rack mount ears and screws.
AT.NTIMEP.GM.DCL	ALBEDO Net.Time PTP Grandmaster Clock. Dual 10 / 100 Mb/s electrical Ethernet port and dual 100 Mb/s optical Ethernet supplying synchronization as specified in IEEE 1588-2008 Annex J “Default Profiles”, IEC 61850-9-3 "Utility Profile", IEEE C37.238-2011 "Power Profile 2011", IEEE C37.238-2017 "Power Profile 2017", ITU-T G.8265.1 “Telecom frequency profile”, ITU-T G.8275.1 “Telecom phase and time profile” and ITU-T G.8275.2 “PTS / APTS profile” to a maximum of 16 clocks. Network Time Protocol version 3 (RFC 1305), version 4 (RFC 5905) and Simple Network Time Protocol version 3 (RFC 1769) master functionality. Internal OCXO timing source. GPS, GLONASS, BeiDou and Galileo clock reference input. 1PPS, 1PP2S and time-of-day inputs and outputs. Inter Range Instrumentation Group type B (IRIG-B) time codes input and output over balanced or unbalanced interfaces. Frame and network statistics. Console and and Ethernet management ports. Local and remote firmware upgrade. Single AC power supply unit (PSU-AC). Single DC 18 – 75 V power supply unit (PSU-DC). Includes console cable, rack mount ears and screws.
AT.NTIMEP.1GE	Adds support for 1 Gb/s Ethernet interfaces over electrical and optical interfaces.
AT.NTIMEP.BC	Boundary clock function for PTP. Adds PTP profile translation functionality. With AT.NTIMEP.NTP adds support for NTP client function. [ASK FOR AVAILABILITY BEFORE ORDERING]
AT.NTIMEP.PRP	Parallel Redundancy Protocol, following IEC 62439-3 for simultaneous transmission of information over two redundant Ethernet ports with zero seconds failover recovery time. [ASK FOR AVAILABILITY BEFORE ORDERING]
AT.NTIMEP.FREQ	Provides support for 2048 kHz, 2048 kb/s, 1544 kHz, 10 MHz and 5 MHz clock reference inputs and outputs.
AT.NTIMEP.GM.USR128	Upgrade to 128 clients. Increases number of client unicast or multicast clocks from 16 to 128 in AT.NTIMEP.GM.AC or AT.NTIMEP.GM.DCL
AT.NTIMEP.GM.USR256	Upgrade to 256 clients. Increases number of client unicast or multicast clocks to 256 in AT.NTIMEP.GM.AC or AT.NTIMEP.GM.DCL
AT.NTIMEP.FHM.RB	Rubidium timing module. Replaces OCXO internal timing source by an atomic (Rubidium) internal timing source in AT.NTIMEP.GM.AC or AT.NTIMEP.GM.DCL
AT.NTIMEP.PSU.AC	Adds an additional AC power supply unit to AT.NTIMEP.GM.AC (PSU-AC2) or AT.NTIMEP.GM.DCL (PSU-AC-DCL). Includes AC power cord.
AT.NTIMEP.PSU.DCL	Adds an additional DC power supply unit to AT.NTIMEP.GM.AC (PSU-AC-DCL) or AT.NTIMEP.GM.DCL (PSU-DCL2).
AT.NTIME.ANT	GNSS kit. GNSS antenna kit for fixed installation. Includes antenna, 50 m of 50 Ohm coaxial cable, surge arrestor and accessories.
AT.NTIME.ANTC	GNSS kit. GNSS antenna kit for fixed installation. Includes antenna, 100 m of 50 Ohm coaxial cable, surge arrestor, in-line amplifier 35 dB gain and accessories.

CODE	NET.TIME TELECOM
AT.NTIMET.GM.AC	ALBEDO Net.Time PTP Grandmaster Clock. Dual 10 / 100 / 1000 Mb/s electrical Ethernet port and dual 100 / 1000 Mb/s optical Ethernet supplying synchronization as specified in IEEE 1588-2008 Annex J “Default Profiles”, ITU-T G.8261.1 “Telecom frequency profile”, ITU-T G.8275.1 “Telecom phase and time profile” and ITU-T G.8275.2 “PTS / APTS profile” to a maximum of 16 clocks. Internal OCXO timing source. GPS, GLONASS, BeiDou and Galileo clock reference input. Synchronous Ethernet input / output and ESMC generation and decoding as specified in ITU-T G.8261, G.8262 and G.8264,.1PPS, 1PP2S and time-of-day inputs and outputs. 2048 kHz, 2048 kb/s, 1544 kHz, 10 MHz and 5 MHz clock reference inputs and outputs. Frame and network statistics. Console and and Ethernet management ports. Local and remote firmware upgrade. Single AC power supply unit (PSU-AC). Includes AC power cord, console cable, rack mount ears and screws. [ASK FOR AVAILABILITY BEFORE ORDERING]
AT.NTIMET.GM.DCL	ALBEDO Net.Time PTP Grandmaster Clock. Dual 10 / 100 / 1000 Mb/s electrical Ethernet port and dual 100 / 1000 Mb/s optical Ethernet supplying synchronization as specified in IEEE 1588-2008 Annex J “Default Profiles”, ITU-T G.8261.1 “Telecom frequency profile”, ITU-T G.8275.1 “Telecom phase and time profile” and ITU-T G.8275.2 “PTS / APTS profile” to a maximum of 16 clocks. Internal OCXO timing source. GPS, GLONASS, BeiDou and Galileo clock reference input. Synchronous Ethernet input / output and ESMC generation and decoding as specified in ITU-T G.8261, G.8262 and G.8264,.1PPS, 1PP2S and time-of-day inputs and outputs. 2048 kHz, 2048 kb/s, 1544 kHz, 10 MHz and 5 MHz clock reference inputs and outputs. Frame and network statistics. Console and and Ethernet management ports. Local and remote firmware upgrade. Single DC 18 – 75 V power supply unit (PSU-DC). Includes console cable, rack mount ears and screws. [ASK FOR AVAILABILITY BEFORE ORDERING]
AT.NTIMET.BC	Boundary clock function for PTP. Adds PTP profile translation functionality. With AT.NTIMEP.NTP adds support for NTP client function.
AT.NTIMET.GM.USR128	Upgrade to 128 clients. Increases number of client unicast or multicast clocks from 16 to 128 in AT.NTIMET.GM.AC or AT.NTIMET.GM.DCL
AT.NTIMET.GM.USR256	Upgrade to 256 clients. Increases number of client unicast or multicast clocks from to 256 in AT.NTIMET.GM.AC or AT.NTIMET.GM.DCL
AT.NTIMET.FHM.RB	Rubidium timing module. Replaces OCXO internal timing source by an atomic (Rubidium) internal timing source in AT.NTIMET.GM.AC or AT.NTIMET.GM.DCL
AT.NTIMET.PSU.AC	Adds an additional AC power supply unit to AT.NTIMET.GM.AC (PSU-AC2) or AT.NTIMET.GM.DCL (PSU-AC-DCL). Includes AC power cord.
AT.NTIMET.PSU.DCL	Adds an additional DC power supply unit to AT.NTIMET.GM.AC (PSU-AC-DCL) or AT.NTIMET.GM.DCL (PSU-DCL2).
AT.NTIME.ANT	GNSS kit. GNSS antenna kit for fixed installation. Includes antenna, 50 m of 50 Ohm coaxial cable, surge arrestor and accessories.
AT.NTIME.ANTC	GNSS kit. GNSS antenna kit for fixed installation. Includes antenna, 100 m of 50 Ohm coaxial cable, surge arrestor, in-line amplifier 35 dB gain and accessories.
