xGenius

xGenius is a nice handheld tester equipped with a large touch-screen to make easier the analysis and results interpretation. It is 100% suitable for labs or field use because is full equipped with IP / Ethernet / PTP / SyncE / T1 / E1 / E0 / C37.94 and Datacom interfaces, battery operated, light (1.9kg) and very rugged. The unit is able to test transmission and synchronization networks up to 10Gb/s. It supports master/slave PTP emulation. Multiple operation modes are possible and includes Performance, Quality, One-way Delay and Wander tests at all interfaces. A built-in Rubidium clock disciplined with GNSS oscillator to provides high accuracy and continue working perfectly in holdover mode.

You may buy just a last generation dual port 10GbE tester and then you may add other interfaces just when you need it by a simple and easy upgrade by code. Then you will be able to get the new firmware supporting the desired functionalities.

Platform

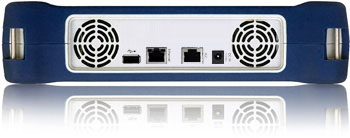

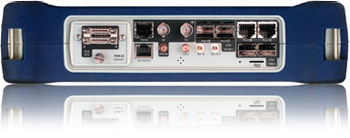

Multiport Interfaces

A:B ports: 2 x SFP/SFP+ (100MbE, 1GbE, 10GbE, 10G WAN)

A:B ports: 2 x RJ45 (10MbE, 100MbE, 1GbE)

C:D ports: Balanced 2 x RJ45 (T1/E1)

C:D ports: Unbalanced 2 x BNC (T1/E1)

GNSS Port: SMA female

PPS Ports: 3xSMB female (i/o)

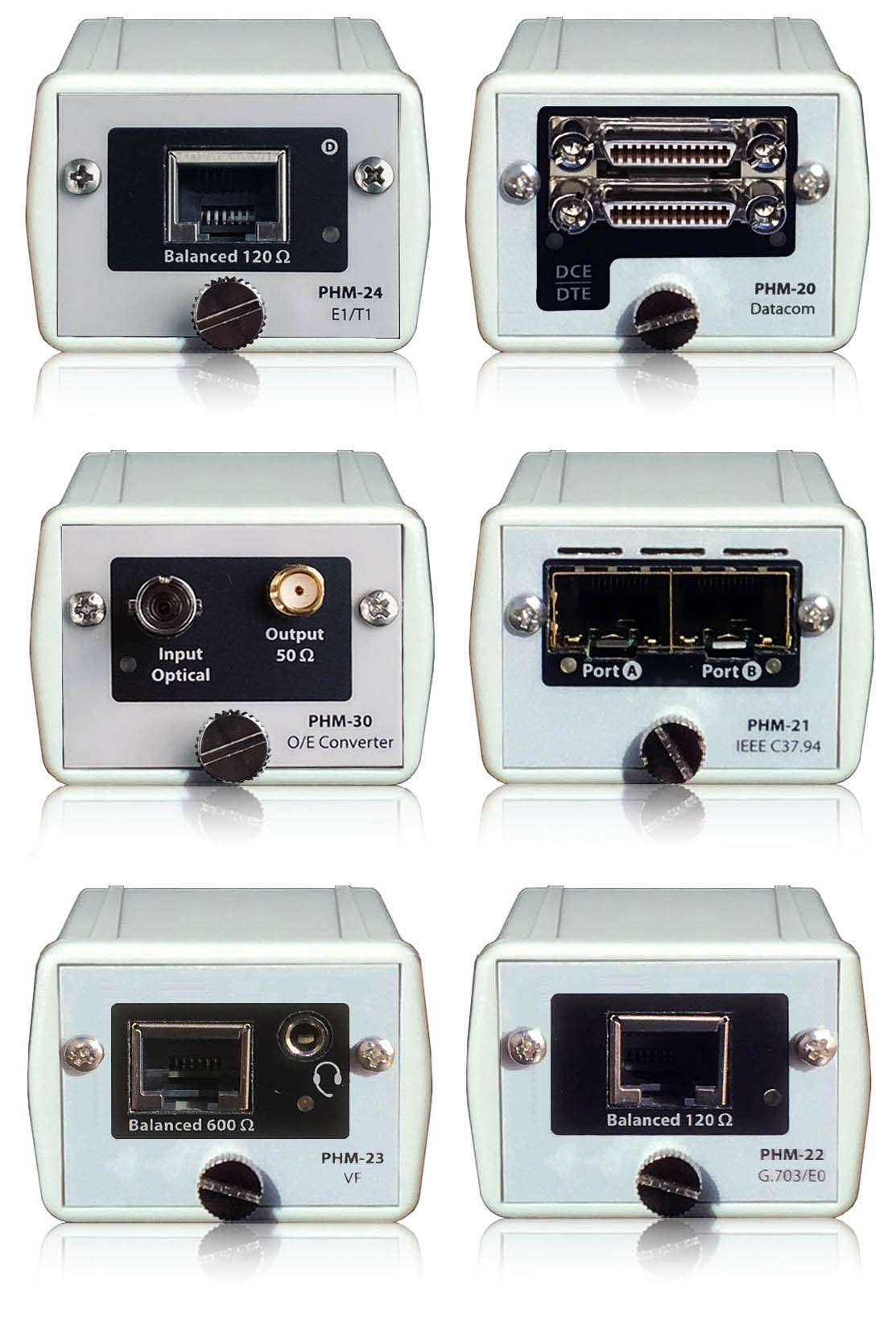

Hot swappable modules

C37.94

Datacom DTE/DCE: V.11/X.24, V.24/V.28, V.24/V.35, V.24/V.11 (V.36/RS449)

VF Port

Codirectional - G703

Operation / Results

Graphic and tabular wander results

Navigation: by touch screen, keyboard, mouse

Remote Control: by VNC

Storage capacity: one week of results

Export: results in pdf/txt/csv through USB interface or SD card

Report export to remote host through Ethernet / IP

Ergonomics

Size: 260 x 160 x 63 mm

Weight: 1.9 kg

Light and easy to carry in a small bag

Start: Manual / Timed with optional password

Batteries

Two pack of Lipo batteries always included

Large duration that also depends on operation, conditions, aging, etc.

Time / Clocks

Internal Clocks

Default better than ±2.0 ppm

OCXO better than ±0.1 ppm

Rubidium better than ±5.0e-11 (GNSS disciplined, warm- up: 600s)

Internal Rubidium clock

Free―run (No GPS)

Freq. accuracy (7.5 minutes warm up): ± e-9

Freq. accuracy on shipment (24 h. warm up): ±5.0e-11

Aging (1 day, 24 hours warm up): ±0.5e-11

Aging (1 year): ±1e-9

GPS locked

Time accuracy (24 h. locked): ±50 ns

Hold - over (after 24 h. locked)

Freq. accuracy: 1.5e-11 / 24h

Time accuracy: ±100 ns / 2h, ±1.0μs / 24 h

Input Clock References

Rates: 1.544 Mb/s, 2.048 Mb/s, 1.544 MHz, 2.048 MHz, 10 MHz

Built-in GNSS receiver, 1 pps

SyncE

GNSS

ToD

1PPS

T1/E1 (1544 kb/s, 2048 kb/s)

Custom delay compensation for phase and time

Output Clock

2.048 MHz, 10 MHz

1 pps

ToD

Custom delay compensation for phase and time

SyncE and PTP testing

PTP profiles: Telecom and Power

Encapsulations: Ethernet and UDP

Clock emulation: Master / Slave, Unicast/Multicast, 128 packet/s

PDV capture, protocol analysis and correction field support

Ethernet PTP Frequency testing

Floor Delay Population (G.8260): FPC, FPR, FPP

Wander: Analysis and Generation TIE, MTIE and TDEV (in real time)

Ethernet PTP Phase testing

Measured at GbE and 1pps interfaces

Time Error (TE): Maximum (max |TE|), Dynamic (dTE), Constant (cTE)

1 pps testing

Wander: TIE, MTIE, TDEV

Time Error (TE): Maximum (max |TE|)

Synchronous Ethernet

ESMC / SSM: Generation, decoding and transparent forwarding

Wander: Analysis/Generation: TIE, MTIE and TDEV (in real time)

Latency and Delay measurements

E1, T1, GbE and 10GbE interfaces

Round-trip delay (RTD)

One-way delay (OWD) GNSS assisted

Ethernet PTP (GbE and 10GbE)

Floor delay packet population, ratio/percentage/count

Path delay asymmetry

End-to-end / peer-to-peer path delay mechanisms

Master-to-slave / Slave-to-grandmaster latency

PTP packet delay variation test

Time Error (TE): Maximum (max |TE|), Dynamic (dTE), Constant (cTE)

Service Disruption Time

Interfaces: E1, T1, IEEE C37.94, Datacom, Co/Contra-directional

Resolution: 100 us

Packet Capture

Protocol Analysis

Wirespeed performance

Programable capture filters

Zero-delay technology

Save them in PCAP format

Full duplex operation

Ethernet/IP Testing

8 x independent streams

Streams: may use individual sour/dest. addresses and bandwidth profile

Internet Protocol: IPv4 / IPv6 support

Frames: DIX, VLAN, Q-in-Q, CoS (DSCP/PCP), MPLS, and Jumbo

IP with UDP or arbitrary protocol

DHCP for source IP and ARP for destination MAC

Counts et statistics

Frame counts, IP traffic statistics, and bit rate

Top ten VLAN, MAC, IPv4 and IPv6 addresses

QoS: Latency, Delay variation, Loss ratio, SES, Availability, OOS, Duplicated

BER Tests et Patterns

Traffic generation: Continuous, Burst, Ramp, Random

PHY layer: RPAT, JPAT, SPAT, HFPAT, LFPAT, MFPAT, LCRPAT, SCRPAT

Layer 2/4 PRBS: 2e11-1, 2e15-1, 2e20-1, 2e23-1, 2e31-1

Layer 2/4 PRBS: all inverted versions

Symmetric/Asymmetric RFC-2544

Throughput

Latency

Loss

Back-to-back

System Recovery

Symmetric/Asymmetric eSAM (Y.1564)

Latency, Delay Variation, Loss, and Availability

Eight / four services (colour/not colour)

CIR, EIR, max, Througput

Loopback

L1 - L4 loopback mode

Traffic filtering by

sour/dest MAC/IP/Port

VLAN, CoS (DSCP/PCP)

Protocol

TCP test - RFC 6349

8 x independent streams

Modes: active (client), passive (server)

ALBEDO / IPerf3 endpoints in client mode

Configurable MTU and MSS

Configurable Bottleneck Bandwidth (BB) in f/s, %

Round-Trip Time (RTT)

Window Sweep at 25 / 50 / 75 / 100% of BDP size

Transfer Time Ratio, TCP Efficiency, Buffer Delay

PDH / T.Carrier testing

Interfaces

T1 (ANSI T1.102)

E1 (ITU-T G.703)

E0/Co-Directional (ITU-T G.703)

Modes

Terminal

Monitor

High Impedance

Pass-through

T1: Framed SF and ESF and unframed Generation/Analysis

E1: Framed PCM-30 / 31 with/without CRC and Unframed signals

T1/E1: Display and Edition: all fields, CAS, Pulse Masks, Events

Channel map: Busy/Free, External Drop/Insert of 64 kb/s co-dir or datacom

Measurements

BER

Line/Freq

Errors/Alarms

G.821, G.826, M.2100

VF: tone generation/analysis

Attenuation, Freq, Freq. deviation, Level, Peak codes

Synchronization

Jitter analysis: Peak to peak, RMS, hits, count (0.1 to 100 kHz range)

Wander: Analysis/Generation and masks (1 μHz to 10 Hz range)

Wander Analysis/Generation in 10 MHz, 2048 kHz, 1544 kHz, 1pps

C37.94 testing

Operation Modes

Unframed or framed operation

Clock: Recovered or Internal

End point or terminal mode

Results with PASS/FAIL indications

Analysis & Generation

Bit Rate generation in steps of nx64 kb/s up to 768 kb/s

BER test

ITU-T G.821 performance test

Event Detection / Insertion

Defects: LOS, AIS, LOF, RDI, LSS, All 0, All 1

Anomalies: FAS, TSE, Slip

Delay & Freq. Tests

Round Trip Delay (ms)

One-way Delay synchronized with GPS

Frequency (Hz)

Frequency Deviation (ppm), max. Deviation

Jitter and Wander analysis

Peak to peak, RMS, jitter, hits detection and count

MTIE and TDEV resolution: 100 ps

Pass / Fail based on standard masks

C37.94 SFPs

Multi-mode: SFP 850 nm, 2048 kbit/s, 1500 meters

Single-mode; SFP 1310 nm, 2048 kbit/s, 10 km

Optical Power Meter

Cable features

Cable tests

Wiremap

Skew

Cable Diagnostics

Distance to fault

Power over Ethernet

PoE and PoE+

Volts / Current

Datacom testing

Modes

Terminal emulation

Bi-directional Monitoring

Datacom / E1 mux

Display and Edition

DTE/DCE control circuit

Timing circuits

Binary rates

Tests

BER, Frequency

Insertion/Analysis of events

G.821

===============

CODE	DESCRIPTION
AT.xGenius.HH	xGenius hand-held tester. xGenius hand-held tester. Battery operated. 1 Gb/s Ethernet tester with optional 10 Gb/s Ethernet, E1/T1 and synchronization capabilities. Includes dual 10/100/1000 Mb/s electrical ports, dual SFP+ ports. QoS statistics, RFC2544 performance test, L1-L4 BER test, continuous / burst / ramp / random traffic generation, traffic statistics, error analysis, connectivity test ('ping', 'traceroute'), analysis filters, event insertion, endpoint and pass-through operation modes, graphical display of events, report generation and export. Includes AC/DC adapter, transportation bag, one RJ-45 patch cable, one BNC-BNC patch cable. SFP+ and SFP transceivers not included.
AT.xGenius.10GO	10 G/bs optical Ethernet test. Adds 10GBASE-SR, 10GBASE-LR and 10GBASE-ZR interfaces.
AT.xGenius.10GE	10 G/bs electrical Ethernet test. Adds 10GBASE-T interface. [REQUIRES: AT.xGenius.10GO]
AT.XGenius.ETHDUAL	Dual port Ethernet generation and analsysis. Adds autonomous and simultaneous traffic generation capabilities to both Ethernet ports.
AT.xGenius.MSTR	Multistream test. Generation over eight independent traffic streams. Eight analysis filters for each test port.
AT.xGenius.1564	eSAM (ITU-T Y.1564) Test of up to 8 services simultaneously. Set up of CIR, EIR and policing rate. Per stream quality objectives. Measurement of Information Rate (IR), Frame Transfer Delay (FTD), Frame Delay Variation (FDV), Frame Loss Ratio (FLR) and Availability. [REQUIRES: AT.xGenius.MSTR]
AT.xGenius.6349	TCP Throughput test (RFC 6349). Computes TCP throughput, efficiency and buffer delay over single or multiple TCP connections following the methodology defined in RFC 6349. This test requires either one unit with two test ports connected to the transmission path ends or two compatible test units each of them installed at the ends of the transmission path.
AT.xGenius.IPV6	IPV6 test. Decoding and analysis of IPV6 datagrams. IPV6 traffic statistics and events. IPV6 packet filtering. TOP IPV6 source and destination addresses (with Network search option).
AT.xGenius.MPLS	MPLS test. Generation of single or double MPLS label according RFC 3032. Configuration of TTL, Traffic class, Label. Filter selection rules by Label and Traffic class fields. Analysis of MPLS. Top LSPs (with Network search option).
AT.xGenius.WIRE	Cable test. Wiremap with open and short circuit detection. Measurement of distance to fault. Crossover / straight cable detection. Measurement of cable skew.
AT.xGenius.POE	Power over Ethernet test. PoE / PoE+ end point and pass through as per IEEE 802.3af and IEEE 802.3at with voltage and current measurement.
AT.xGenius.NS	Network Search. Automatic detection of up to 16 most frequent streams listed by Ipv4, VLAN and MAC.
AT.xGenius.ASYM	Asymmetric RFC 2544 and eSAM (ITU-T Y.1564). Asymmetric RFC 2544 and eSAM (ITU-T Y.1564). Enables separated measurement of upstream and downstream performance for RFC 2544 (measurement of throughput, latency, frame loss and back-to-back frames) and eSAM (measurement of the IR, FTD, FDV, FLR and Availability). Enables responder operation in asymmetric RFC 2544 and eSAM tests.
AT.xGenius.CAPT	Ethernet Traffic capture. Captures Ethernet and IP traffic in endpoint and pass-through modes. Includes hardware frame time stamping and filtering. Allows synchronization of capture time stamps with external clock input available in the unit.
AT.xGenius.61850	IEC 61850 Analysis. Identifies and analyses IEC 61850 GOOSE and SV streams providing latency, jitter and frequency statistics about the selected streams. Enables GOOSE and SV filters for custom analysis of IEC 61850 data streams.
AT.1000SX.SFP	SFP Adapter 1.25 Gbps SFP, 850 nm, MMF, 500 m reach, w/ DDM, Duplex LC, 0 – 70ºC
AT.1000LX.SFP	SFP Adapter 1.25 Gbps SFP, 1310 nm, MMF, 20 km reach, w/ DDM, Duplex LC, 0 – 70ºC
AT.1000ZX.SFP	SFP Adapter 1.25 Gbps SFP, 1550 nm, MMF, 80 km reach, w/ DDM, Duplex LC, 0 – 70ºC
AT.10GT.SFP	SFP Adapter 10GBASE-T Electrical SFP transceiver, 30 m reach, 0 – 70ºC
AT.100FX.SFP	SFP Adapter 100BASE-FX, 125 Mb/s SFP, 1310 nm, MMF, 2 km reach, w/ DDM, Duplex LC, 0 – 70ºC
AT.10GS.SFP	SFP Adapter 10 Gb/s, 850 nm, MMF, 300 m reach, w/ DDM, Duplex LC, 0 – 70ºC
AT.10GL.SFP	SFP Adapter 10 Gb/s, 1310 nm, SMF, 2 km reach, w/ DDM, Duplex LC, 0 – 70ºC
AT.10GZ.SFP	SFP Adapter 10 Gb/s, 1550 nm, SMF, 40 km reach, w/ DDM, Duplex LC, 0 – 70ºC
AT.10GPDA.SFP	SFP 10Gb/s cable assembly. 10 Gb/s SFP+ passive direct attach cable assembly, 1m
AT.10GWDM.SFP	SFP Adapter 10Gb/s, 1550 nm, SMF, 80 km reach, w/DDM, DWDM, Full C-band tunable, Duplex LC, 0-70ºC
AT.xGenius.E1	E1 test. ITU-T G.703 2048 kb/s testing including BNC and RJ48 connectors,single port E1 generation and analysis; ITU-T G.704 frame structure with or without CRC and with or without CAS; internal, recovered and external clock references; CAS ABCD bits generation and analysis; FAS / NFAS analysis; E1 frame occupation map; frequency and received power level measurements; G.821, G.826 and M.2100 performance analysis; round trip delay measurement; service disruption time test.
AT.xGenius.T1	T1 test. ANSI T1.102 1544 kb/s testing over RJ-48 connector. Single port T1 generation and analysis; ANSI T1.403 SF (D4) and ESF frame structures with robbed bit generation and analysis; FDL signaling channel; internal, recovered and external clock references; T1 frame occupation map; frequency and received power level measurements; G.821, G.826 and M.2100 performance analysis; round trip delay measurement; service disruption time test.
AT.xGenius.Data	Datacom test module. DTE / DCE emulation and datacom monitor modes. V24 / V.28 (RS-232) asynchronous and synchronous interfaces, X.21 / V.11 (RS-422) asynchronous and synchronous, V.35, V.36 (RS-449), EIA-530 and EIA-530A. Plug-in module PHM20 included. Datacom cables not included.
AT.xGenius.C3794	IEEE C37.94 test module. Dual port IEEE C37.94 generation and analysis including IEEE C37.94 frame structure; internal, recovered and external clock references; frequency measurements; bit error ratio tests, G.821 performance analysis, anomaly and defect reports, round trip delay measurement, service disruption time test. Plug-in module PHM21 included. Optical fibers and SFPs not included.
AT.xGenius.E0	ITU-T G.703 co-directional, contra-directional and centralized interface test module. Generation and analysis in ITU-T variable bit rate co-directional, contra-directional and centralized interfaces including internal, recovered and external clock refereces; frequency measurements; bit error ratio tests; G.821 performance analysis; round trip delay measurement; service disruption time. Plug-in module PHM22 included. E0 cables not included. [REQUIRES AT.xGENIUS E1 or AT.xGENIUS.T1]
AT.xGenius.VF	Voice frequency test module. Generation and analysis of voice frequency tests, including frequency, level, noise, round trip delay and frequency sweep analysis. PHM23 included. VF cables not included.
AT.xGenius.PULSE	Pulse Mask Analysis. Displays the pulse shape and checks compliance with ITU-T G.703 or ANSI T1.102 masks. Includes eye diagram operation mode and analysis of pulse time and level metrics. [REQUIRES: AT.xGenius.E1 or AT.xGenius.T1]
AT.xGenius.VFD	Enables latency tests in VF interfaces. AUX port adapter not included. [REQUIRES AT.xGenius.VF]
AT.xGenius.OWD	One-way delay test. Measures end-to-end, one-way delay in ITU-T G.703 2048 kb/s, ANSI T1.102 1544 kb/s, IEEE C37.94, Datacom and VF interfaces. This test requires two compatible test units to be installed in at the ends of the transmission path to be measured. [REQUIRES: AT.xGenius.E1 or AT.xGenius.C3794 or AT.xGenius.T1 or AT.xGenius.E0 or AT.xGenius.VFD] [REQUIRES AT.xGenius.REF]
AT.xGenius.TDMDUAL	Additional E1 / T1 port. Provides dual port traffic generation / analysis and bi-directional pass-through capabilities for ITU-T G.703 2048 kb/s or ANSI T1 102 1544 kb/s port. Plug-in module PHM24 included. [REQUIRES AT.xGenius.E1 or AT.xGenius.T1]
AT.71	RJ48 loopback
AT.76	Mini Balun. RJ48 to BNC male, one way. Input adapter
AT.77	RJ48 to bantam adapter 1 meter cable. RJ48 male to bantam male.
AT.771	RJ48 to bantam adapter 2 meters cable. RJ48 male to bantam male.
AT.90	RJ48 to RJ48 E1 crossover cable.
AT.HS	Head-set 3.5 mm jack integrated headphone and microphone.
AT.V24	V.24 / V.28 / RS-232 cables. V24 / V.28 / RS-232 DTE and DCE interface cables.
AT.X21	X.21/V.11 cables. X.21/V.11 DTE and DCE interface cables.
AT.V35	V.35 cables. V.35 DTE and DCE interface cables.
AT.V36	V.36/RS-449 cables. V.36/RS-449 DTE and DCE interface cables.
AT.530	EIA-530 / EIA-530A cables. EIA-530 / EIA-530A DTE and DCE interface cables.
AT.C37.94SX.SFP	IEEE C37.94 SFP adapter.2048 kb/s SFP, 850 nm, 2Km, MMF, Duplex LC, 0 – 70ºC.
AT.C37.94LX.SFP	IEEE C37.94 SFP Adapter 2048 Kbps SFP, 1310 nm, 20Km, SMF, Duplex LC, 0 - 70ªC (Attenuator 10dB included)
AT.C37.94LX2.SFP	IEEE C37.94 SFP adapter 2048 kb/s SFP, 1310 nm, 60Km, SMF, Duplex LC, 0 – 70ºC.
AT.C37.94ZX.SFP	IEEE C37.94 SFP Adapter 2048 Kb/s SFP, 1550 nm, 120Km, SMF, Duplex LC, 0 - 70ªC
AT.xGenius.SET	Synchronous Ethernet test. SyncE Clock Emulation, synchronization testing according to ITU-T G.8261, G.8262, G.8264. Ethernet line frequency (MHz), offset (ppm), drift (ppm/s). Analysis / Generation of ESMC messages. SyncE clock reference inputs. Synchronous Ethernet TIE / MTIE / TDEV measurement and wander generation. [REQUIRES: AT.xGenius.REF] [REQUIRES: AT.xGenius.OCXO or AT.xGenius.RB]
AT.xGenius.PTPT	Precision Time Protocol test. IEEE 1588v2 / PTP master and slave clock emulation, PTP passive monitoring. PTP message classification and analysis, PDV analysis. PTP wander test, time interval error (TIE), maximum TIE (MTIE) and time deviation TDEV measurement. Floor delay population test, Time error (TE), maximum Time Error and path asymmetry test. [REQUIRES AT.xGenius.REF] [REQUIRES: AT.xGenius.OCXO or AT.xGenius.RB]

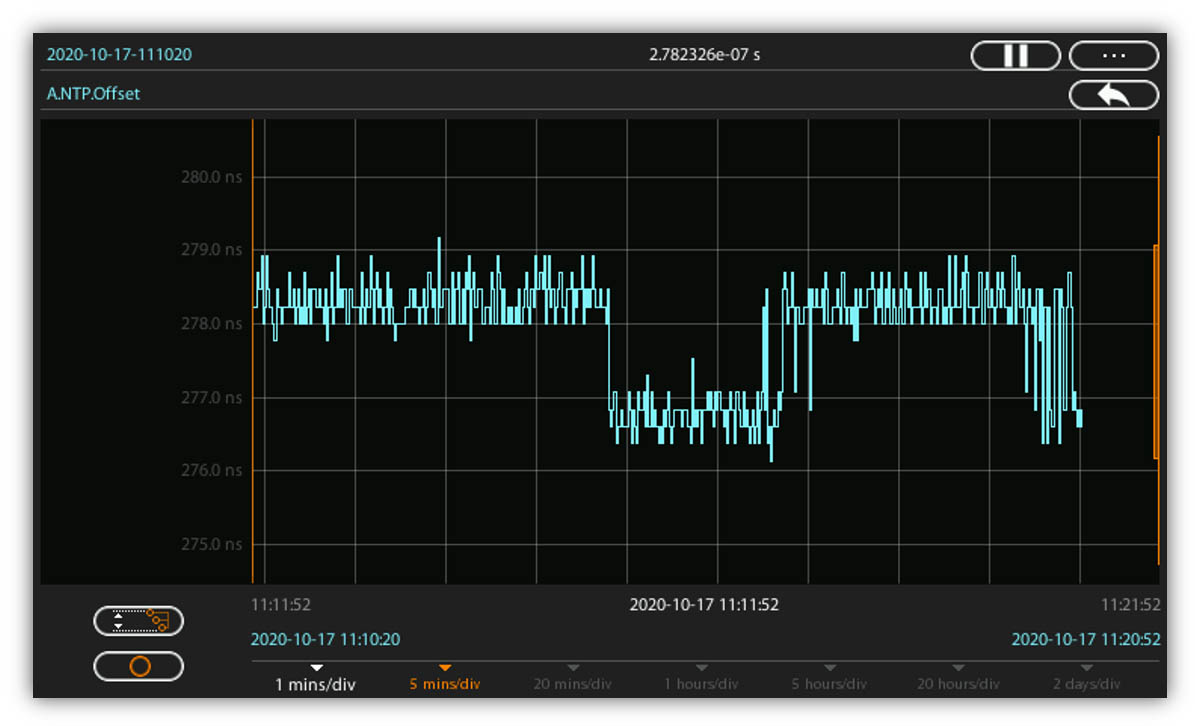

AT.xGenius.NTPT	Network Time Protocol test. NTPv3 / NTPv4 server and client emulation. NTP traffic filtering, classification and analysis. NTP delay, asymmetry and Time Error (TE) statistics. [REQUIRES AT.xGenius.REF]
AT.xGenius.JW	TDM Jitter / Wander. Peak-to-peak jitter, RMS jitter, max. jitter, jitter hits detection. Configuration of jitter filters. Frequency offset (ppm), frequency drift (ppm/s). Wander metrics (TIE, MTIE, TDEV). Sinusoidal jitter and wander generation. [REQUIRES: AT.xGenius.E1 or AT.xGenius.T1 or AT.xGenius.C3794] [REQUIRES AT.xGenius.REF]
AT.xGenius.CLK	1544 kHz, 2048 kHz, 10 Mhz, 1 PPS and ToD clock monitoring. Clock TE / TIE / MTIE / TDEV analysis, frequency (Hz), frequency offset (ppm) and frequency drift (ppm/s) analysis, jitter / wander analysis. [REQUIRES: AT.xGenius.OXCO or AT.xGenius.RB] [REQUIRES: AT.xGenius.REF]
AT.xGenius.OCXO	OCXO time reference. High performance internal oscillator replacing the standard time reference installed in the application board.
AT.xGenius.RB	Rubidium time reference. Atomic (Rubidium) internal oscillator replacing standard time reference installed in the application board.
AT.xGenius.REF	Additional clock reference inputs and outputs. Adds GPS / GLONASS / Beidou / Galileo RF interface (SMA connector), REF IN, REF OUT additional clock reference inputs (SMB connector), REF IN / OUT additional clock reference (RJ-48 connector) and PPS IN addtional test input (SMB connector) . Provides absolute time reference required by one-way latency measurements and TDM, Synchronous Ethernet and IEEE 1588v2 synchronization tests. Provides hardware support for additional clock test signals. Includes compact GNSS antenna with magnet (5m cable - SMA M) and 10 meters 50 Ohm coaxial cable with SMA male / female connectors.
AT.xGenius.IRIGB	IRIG-B clock reference input and output.Adds to the clock reference inputs and outputs list the IRIG-B balanced (unmodulated, Manchester encoded) and unbalanced (modulated, unmodulated, Manchester encoded) interfaces. [REQUIRES: AT.xGenius.REF]
AT.23	10 meters 50 Ohm coaxial cable with SMA male / female connectors. Extends the range of the GPS /GLONASS antenna by 10 meters.
AT.26	BNC M to SMA M cable. 1.5 meters 50 Ohm coaxial cable. SMA male to BNC male
AT.791	BNC M to SMB M cable. 1.5 meters 50 Ohm coaxial cable. SMB male to BNC male
AT.VNC.RC	Graphical Remote Control. Based on VNC for Windows and Linux. Ethernet / IP remote control that duplicates the tester graphical user interface in a remote computer.
AT.SNMP.RC	SNMP Remote Control and automation. Based on SNMP protocol allows user to control the tester remotelly using SNMP queries.
AT.WIFI.RC	Wi.Fi USB Remote Control wireless interface to be used together with VNC. [REQUIRES: AT.VNC.RC]
AT.27	Car cord power adapter, including 2.5mm DC connector
AT.xGenius.CERT	Certificate of calibration. Accuracy calibration certificate, executed only when is sold and before its shipment.
AT.xGenius.CHECK	Periodic Unit Verification. Includes board test verification (Calibration, Internal Frequency), test port verification (Ports A / B / C: Ethernet, SFP, unbalanced E1, balanced E1, VF Port , DTE / DCE Ports), analog verification (level port A / B / C, line attenuation, jitter error, pulse mask), clock reference input and output port verification (REF IN, REF OUT, REF IN/OUT, GNSS).
